Tool Carrier Maredo STrac 700-720
Tool carrier STrac 700-720. The completely unique series of MAREDO ST surface finishing machines is the result of a carefully thought-out and innovative development, based on the wishes of the market. By listening carefully to the customer and with care and an eye for detail, the STrac700 & STrac 720 is the sum of careful research, in combination with the use of high-quality technology. The result may be there! The leading role in the ST series machine is reserved for the base unit STrac 700-720. The STrac 700-720 are self-propelled tool carriers that can be equipped with multiple tools for surface treatment. Model Strac 700 is equipped with a Honda petrol engine with a power of 9 hp and recoil start; the model STrac 720 is equipped with a Honda petrol engine with a capacity of 13 hp and an electric start.
Technical specifications
-
STrac 700: Honda petrol engine, 9 hp, repetitive start
-
STrac 720: Honda petrol engine, 13 hp, electric start
-
Minimum width 90 cm
-
Maximum width 130 cm
-
Total machine length 200 cm
-
Weight without add-on units 245 kg
-
Engine power 9 & 13 hp
-
Speed ​​forward 0-6 km/h
-
Reverse speed 0-4 km/h
​​
Characteristics
-
Very short turning circle
-
Hydraulic lifting device with floating position
-
Change tools without using tools
-
Constant working speed using the cruise control
-
Implements float fully in working position
-
Very short turning circle
-
Hydraulic lifting device with floating position
-
Change tools without using tools
-
Constant working speed using the cruise control
-
Implements float fully in working position

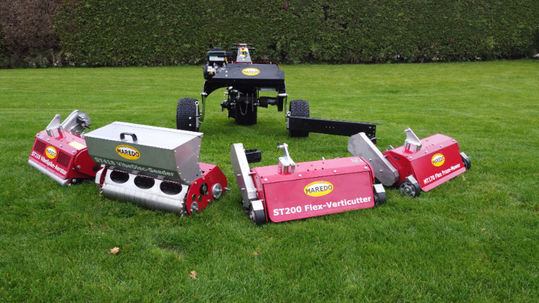

You can use the multifunctional basic tool carrier in combination with a cultivator, scarifier, aerator or a handy seeder. All attachable units (change without the use of tools!) float fully in working position and are mechanically driven via a PTO and heavy duty chains or belts (depending on the model). Equipped with a hydraulic lifting device with floating position as standard. Fitted with a hydrostatic forward/reverse with standard cruise control. Multiple rear wheel positions, quick to change. All implement controls are located on the handlebar. Standard with automatic PTO engagement function. ST units can be quickly connected/disconnected without tools.
Milling Unit ST170 for tool carrier Maredo STrac
Milling unit ST170. This cutter 'strips' the top layer of the turf. After the treatment, an even and flat area remains. Treated area can be overseeded immediately after clearing. Unique system of slanted bushes between the blades. Ideal for bad spots or other poor turf.
Technical specifications
-
Working width 66 cm
-
Working depth 0-10 mm
-
Weight 70 kg
-
Standard blade spacing 0 mm
-
Standard sheet thickness 3 mm
-
Working speed up to 3 km/h
Characteristics
-
Very short turning circle
-
Change tools without using tools
-
Constant working speed using the cruise control
-
Implements float fully in working position
Scarifying Unit ST200-201 for tool carrier Maredo STrac

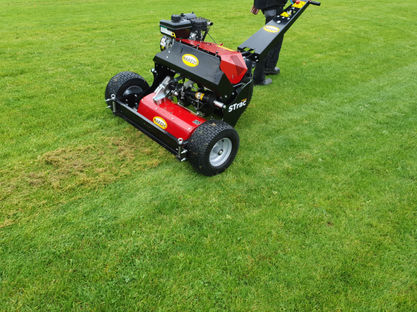

Scarifier ST200 and ST201. This ST scarifier guarantees perfect cutting quality thanks to the design of the blades in combination with the speed. You can choose a version with 2.3 mm blades (ST200) @ 40mm or 1.4 mm blades (ST201) @30 mm. Supplied as standard with seven carbide cutting tips per blade. Reverse-rotating blades (rotation against the direction of travel) removes more material with minimal damage to the turf. Easy depth adjustment by turning quick adjusters. Equipped with a heavy duty, maintenance-free chain drive. Ideal for heavy scarifying work, verticutting or just a light grooming treatment.
Technical specifications
-
Working width 66 cm
-
Working depth 0-25 mm
-
Weight 65 kg
-
Standard blade distance 40 mm
-
Standard sheet thickness 2.3 mm
-
Working speed up to 6 km/h
-
Model ST200: 2.3 mm blades ø40 mm
-
Model ST201: 1.4 mm blades ø30 mm
Characteristics
-
Blades rotate against the direction of travel
-
Quick depth setting
-
Constant working speed using the cruise control
-
Implements float fully in working position
-
Change tools without using tools
What can sometimes be difficult with the 'ordinary' spike aerators is the fact that a lot of weight has to be used to push the spikes into the soil and the holes produced do not look good. This is always a problem for small machines because weight does not benefit a small machine. To solve this problem, Maredo developed an innovative technique that uses vibrations to drive the spikes into the ground without needing much weight. The six independent spike sections are mounted on a camshaft. As soon as this shaft is driven, the rolling spikes begin to vibrate. These vibrations help the spikes get into the ground. When the spikes are fully pushed into the soil, the vibrating spikes loosen the soil. Loosening the soil is important for reducing soil compaction and achieving healthy grass growth. It is possible to use the aerator GT210 at mowing speed, after which you can immediately play on the greens again. No disruption to players!
Aerator Unit ST210 for tool carrier Maredo STrac
Aerator ST210. This special aerator is equipped with a unique scarifying system with vibrating spikes. The six vibrating spike sections per ST210 break soil compaction. The vibration system ensures optimum spike penetration, pushes the spikes through hard layers and ensures active aeration. The vibration leaves a nice clean hole, without disturbance. The spikes roll over stones and other hard objects.
Technical specifications
-
Constant working speed using the cruise control
-
Implements float fully in working position
-
Change tools without using tools
​​
Characteristics
-
Working width 66 cm
-
Working depth 0-60 mm
-
Spike spacing 52mm
-
Spike thickness 4 mm
-
Working speed up to 6 km/h
-
Weight 80 kg
